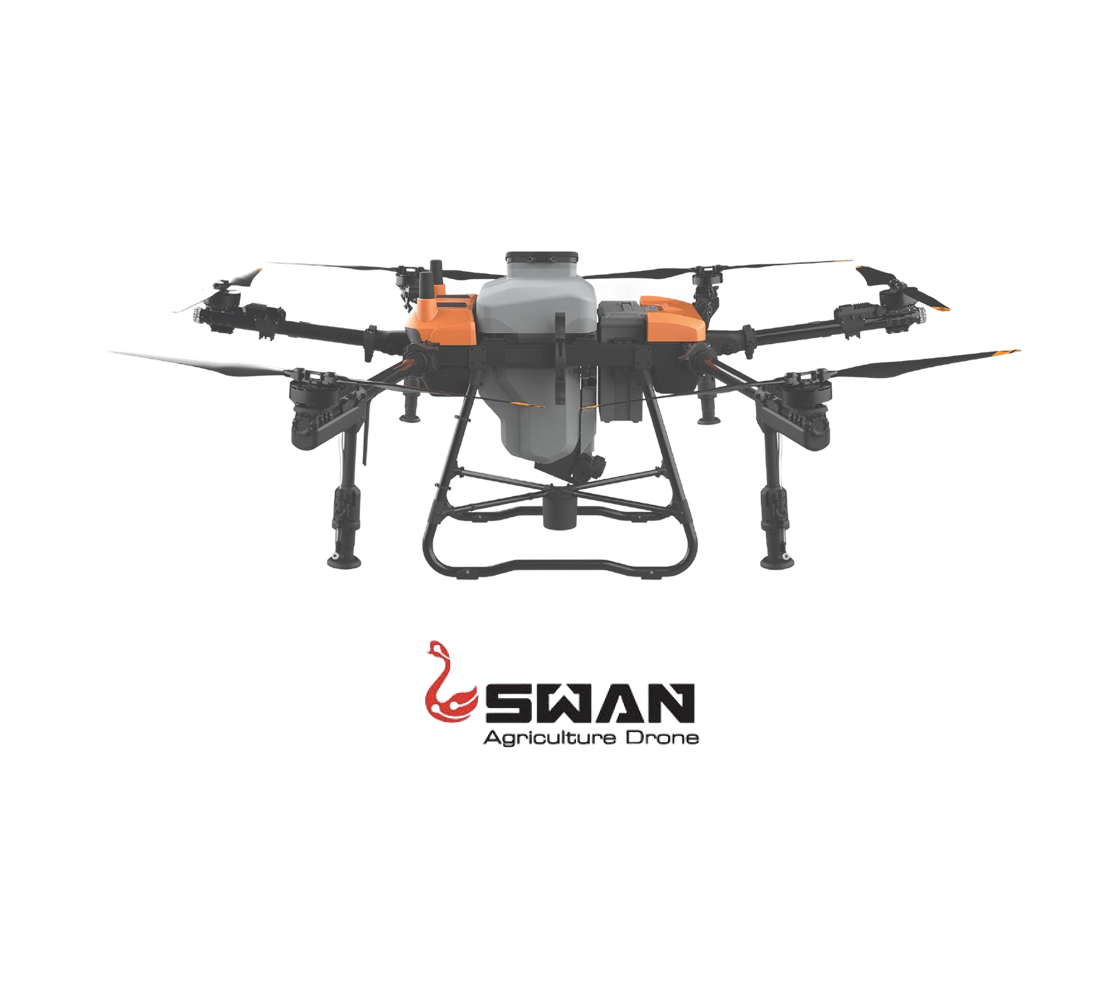

Aviro H40

Aviro H40 balances spraying and spreading efficiency with mobility. Developed with PT GAN, it is our first TKDN-approved drone, also known as HD540S.

AVIRO H40
Large Tank Capacity

40L water tank and 60L spreading capacity for fewer refills and efficient operation.

Precise Hovering Accuracy

RTK horizontal ±10cm, vertical ±10cm, and radar ±0.1m for precise spraying and spreading.

Long Hovering Time

18 minutes no-load, 8.5 minutes spraying, powered by a 22,000mAh battery.

High Efficiency

Up to 22 ha/h coverage and 8-9 minutes of efficient spraying per flight.

Advanced Spraying System

4 nozzles with 13.5L/min max flow and 11m spray amplitude for uniform coverage.

Efficient Power System

30,000mAh battery with quick charging (20%-95% in 13 minutes) for 7-8 minutes of spraying.

Performance & Specifications

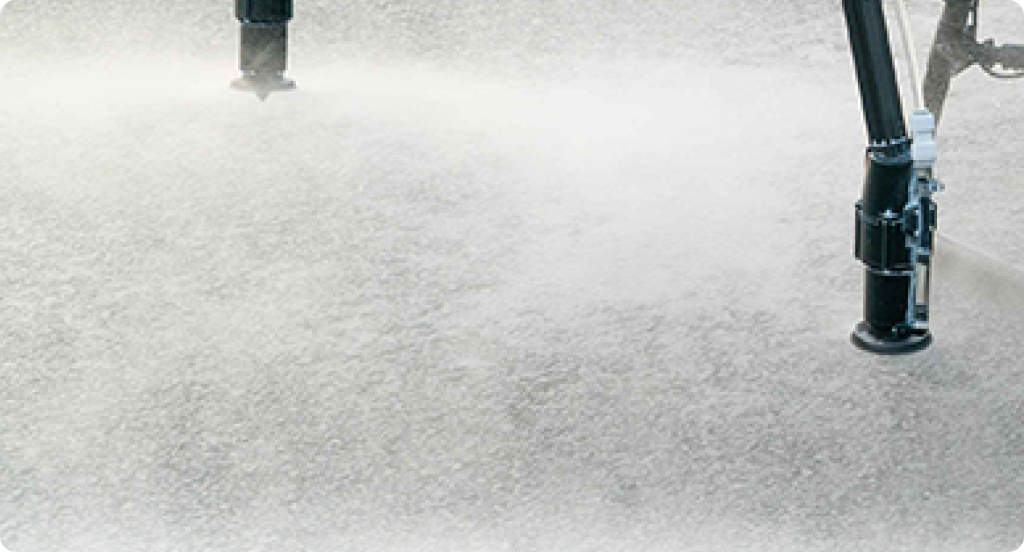

Max Flow Rate of 13.5L/Min
Max Flow Rate of 13.5L/Min

Maximum spray flow of 13.5L/min with adjustable precision, ideal for targeted application.

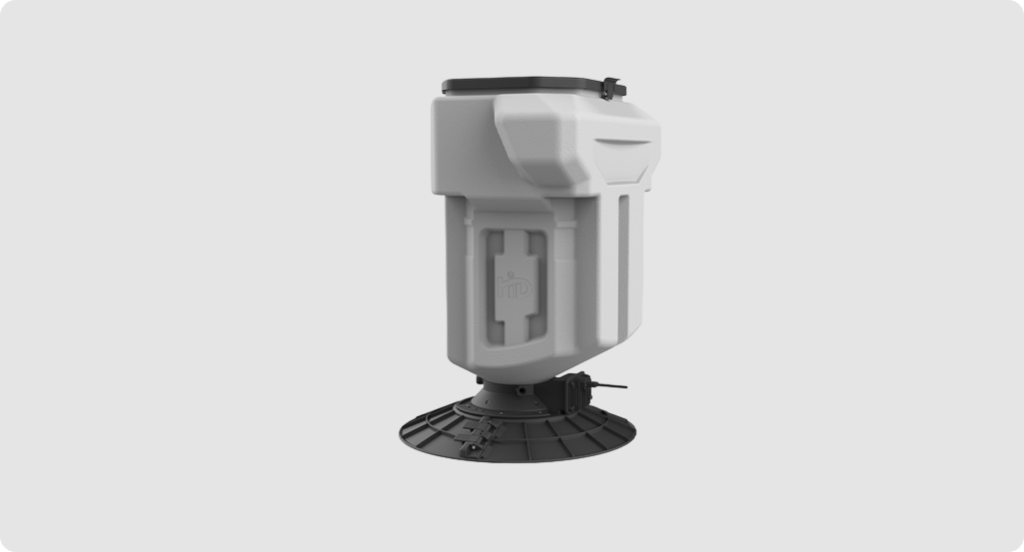

High Spreading Efficiency
High Spreading Efficiency

60L spreading capacity with the ability to cover large areas efficiently, supporting high-volume operations.

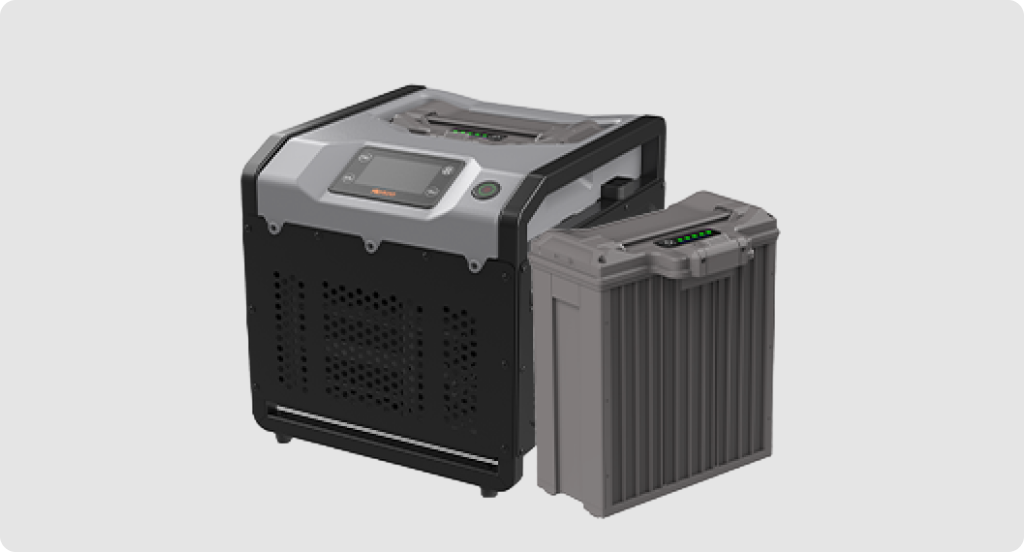

Fast Charging
Fast Charging

8500W intelligent charger allows rapid charging from both generator and mains power sources, ensuring quick readiness.

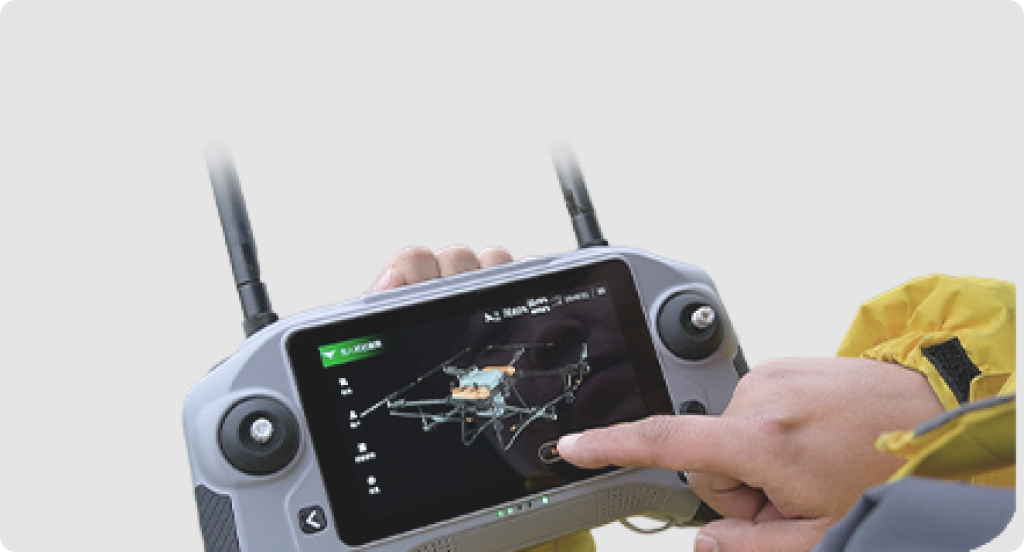

5-Hour Battery Life & >1.5KM Transmission
5-Hour Battery Life & >1.5KM Transmission

Offers up to 5 hours of flight time with reliable image transmission range exceeding 1.5 km for stable long-distance control.

Technical specifications

Weight of machine48 kg (including battery, tank)
Dimension2028 x 1922 x 862 mm
Maximum length3315 mm (propeller unfolded)
Water tank capacity40 L
Spreading capacity60 L
Hovering accuracyRTK: ±10cm, Radar: ±0.1m
Full-load hovering (Spray)8.5 min
Full-load hovering (Spread)7 min
No-load hovering18 min
Max efficiency22 ha/h
Height range1-30 m
Obstacle avoidance range1-30 m
Graphic transmission>1.5 km
Max take-off weight (Spray)88 kg
Max take-off weight (Spread)95 kg
Nozzle typeCentrifugal
Nozzle quantity4
Max flow13.5 L/min
Max spray amplitude11 m
Nominal power220V/2200W, 220V/8000W (generator)
Fuel consumption500 ml/kWh
Battery weight13.3 kg
